Hobbyist CNC Hardware Guide
Getting professional 3D carving results on Shapeoko, X-Carve, Onefinity, and more.
Popular CNC Platforms
Shapeoko (Carbide 3D)
- Drive: Belt/Lead Screw
- Rigidity: High
- Strengths: Best for beginners/intermediate
X-Carve (Inventables)
- Drive: Belt Drive
- Rigidity: Moderate
- Strengths: Massive community & Easel support
Onefinity
- Drive: Ball Screw / Rail
- Rigidity: Very High
- Strengths: Precision and ease of assembly
LongMill (Sienci)
- Drive: Lead Screw
- Rigidity: High
- Strengths: Value for money & open source
Snapmaker
- Drive: Linear Module
- Rigidity: Moderate
- Strengths: All-in-one flexibility

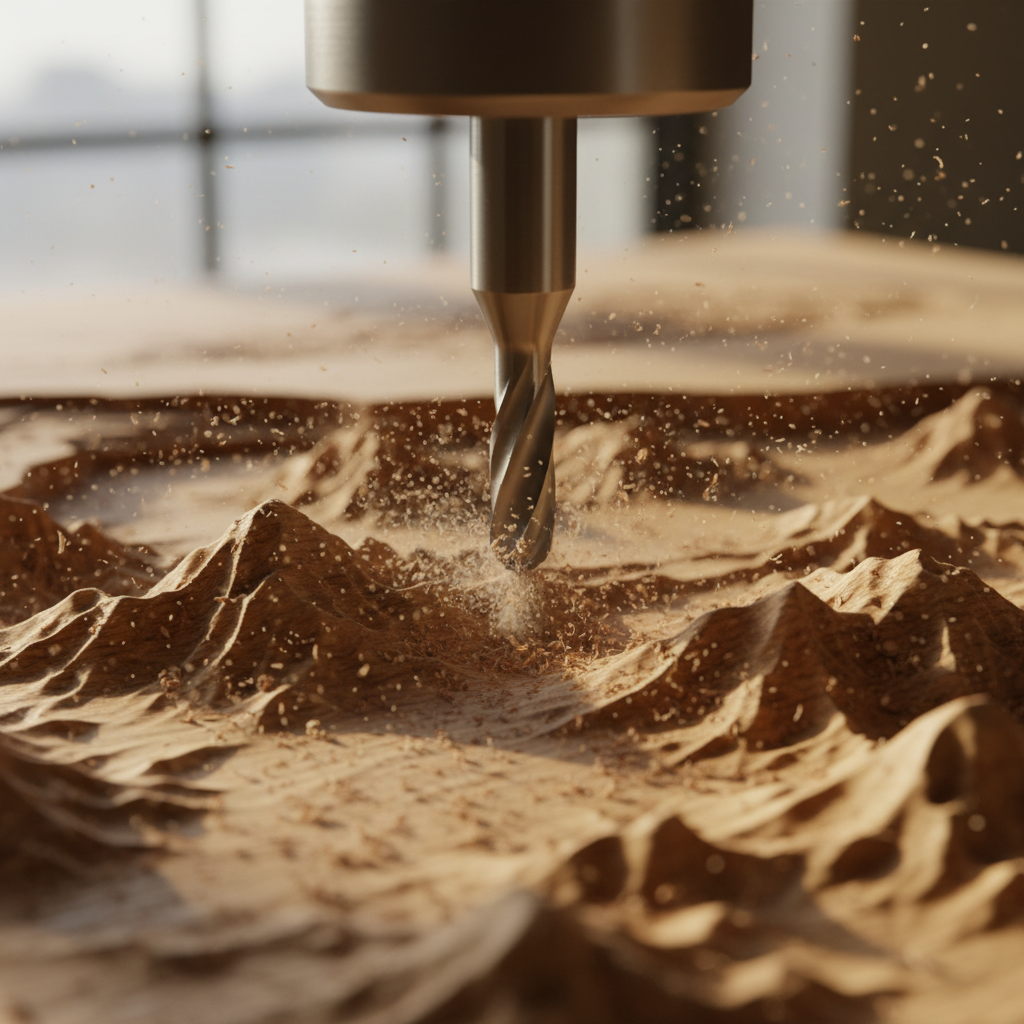

Mastering 3D Reliefs
3D carving is a marathon, not a sprint. While your machine can move fast in 2D (clearing), the Z-axis intensity of a 3D relief requires specific settings to avoid missing steps.
Recommended Feed Rates (Softwood/Hardwood)
- • Roughing Pass: 80-120 in/min (2000-3000 mm/min)
- • Finishing Pass: 60-100 in/min (1500-2500 mm/min)
- • Stepover: 8-10% of bit diameter for finishing
Essential Resources
Stay up to date with the latest firmware and settings from the manufacturers:
The Secret to Detail: Bit Selection
For hobby machines, bit selection is often more important than machine rigidity when it comes to final detail.
Square End Mill
The workhorse for bulk removal. Unmatched for cost, speed, and efficiency when clearing large flat areas or roughing.
Tapered Ball Nose
The "go-to" for 3D reliefs. The taper provides strength while the small tip captures fine detail.
